HIGH QUALITY LCD SCREEN The new eXpressive 830L has a brand new high quality full color LCD touch screen. Thanks’ to its new technology, the new display is more receptive, intuitive and speedy. Main icons and symbols didn’t change to remain easy-to-use for our users.
GIVE FREE REIN TO YOUR CREATIVITY!
Computerized embroidery machine
The eXpressive 830 is our model entirely dedicated to which are faithful to your embroidery projects. This embroidery machine at the cutting edge of technology will allow you to customise all your creative projects and your wardrobe in no time.
With a very extensive embroidery space, the eXpressive 830 offers an ideal work area for large projects, lettering and combining several embroidery designs, while limiting hoop movements. Among other features that you cannot do without, this stable and robust model offers a range of 160 built-in designs and a new colour touch screen. This will give you the opportunity to directly rework your embroidery designs with ease.
Its sophisticated look houses a reliable and safe mechanism that provides easy access to all the functions of the eXpressive 830. Its technical features will allow you to master the art of embroidery to perfection and thus prioritise your creativity!

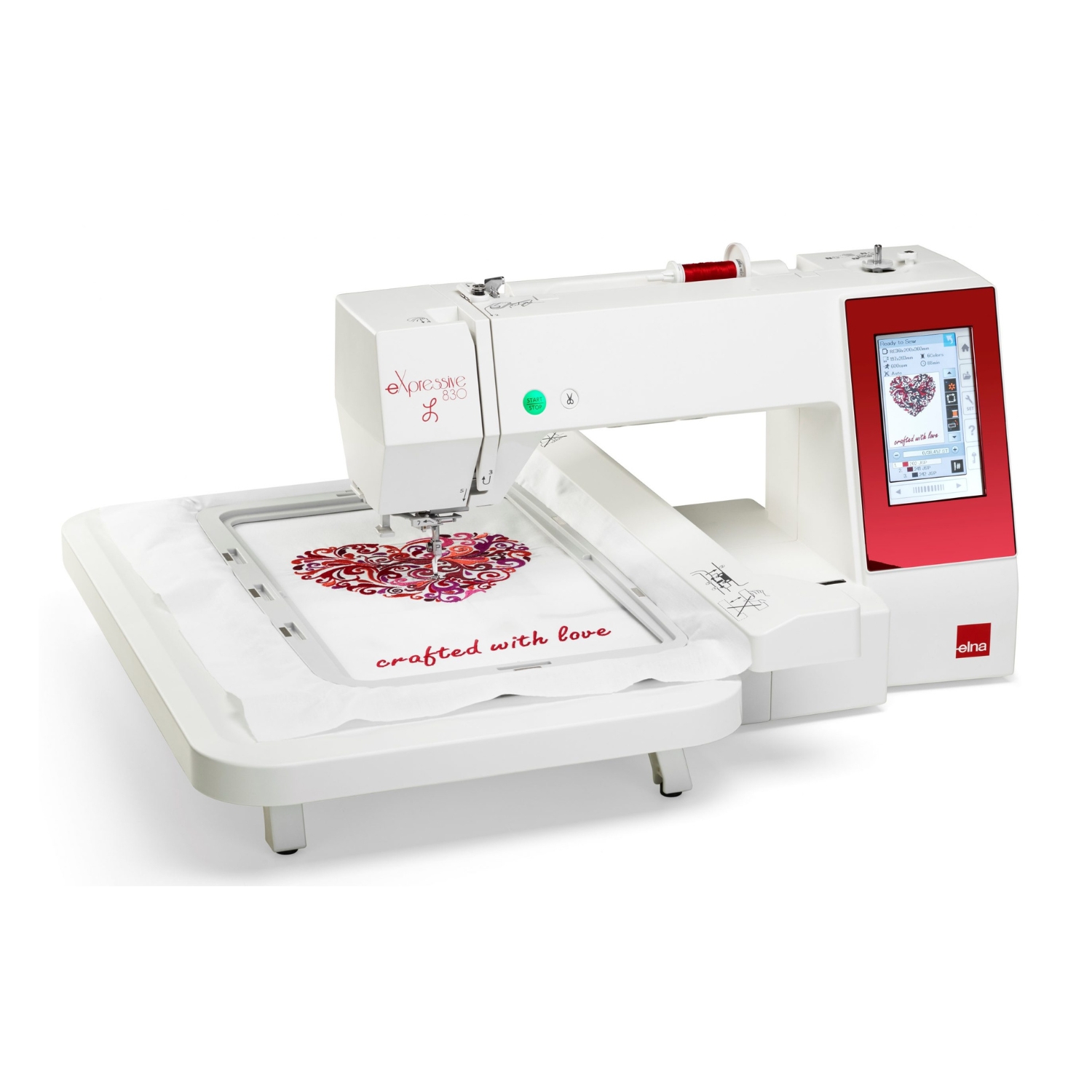

Showcasing Elna eXpressive 830L
NEW EMBROIDERY DESIGNS
With new alphabet designs higher than ever, you will be able to customize specific items as school or gym bags.
FINE POSITIONING / ANGLE ADJUSTMENT
It is now possible to make fine adjustment of the position or angle of the embroidery design without removing the hoop from the machine.
NUMERIC KEYPAD
It is possible to jump to the desired sewing point directly by pressing the jump key and the numeric keypad window will open. The hoop will move to the sewing point user asked.
TOUCH TYPE TRACING CROSS MARK
Thanks to a cross mark you can see the current sewing point of your pattern.
EMBROIDERY CARRIAGE AND THREADING
It is possible to thread the eXpressive 830L while embroidering by pressing the lock key. The carriage will move to the right side for an easy threading and it will move back to the start position after.
UPGRADED ROTATE FUNCTION
With the new eXpressive 830 is possible to rotate your embroidery design on the screen even when the size is larger than hoop. The screen will turn grey if the embroidery design is outside of the hoop.
ZOOMING FUNCTION
The zoom function of the eXpressive 830 is very useful when users need more visibility when connecting fine or small designs.
ADJUSTMENT NEEDLE POSITIONING
With the new expressive 830L, it is possible to adjust the needle position after starting embroidering. With our previous embroidery models, this setting was available only before starting.
| Machine Features | elna eXpressive 830L |
|---|---|
| Machine Size (mm)
|
W 566 x H 335 x D 462 mm
|
| Machine Weight
|
11.5kg
|
| Workspace (mm)
|
W 303.5 x H 120 mm
|
| Maximum embroidery area
|
200 mm x 360 mm
|
| Wide, high speed and full-color LCD touch screen
|
62.8 x H 110.9 mm
|
| Horizontal full rotary hook
|
With transparent bobbin cover
|
| Flat bed
|
Yes
|
| Horizontal spool pin
|
Yes
|
| Easy and guided bobbin threader with thread cutters
|
Yes
|
| Easy bobbin winder with built-in thread cutters
|
Yes
|
| Bobbin winder
|
Auto-declutch
|
| Design/Pattern selection
|
Touch panel selection
|
| Screen type and size (mm)
|
Color LCD with backlight W62.8 × H110.9
|
| Bobbin winding speed
|
1600 spm
|
| Built-in needle threader
|
Yes
|
| Automatic thread tension control
|
Yes
|
| Automatic threader cutter
|
Yes
|
| Upper thread and bobbin thread tension sensors
|
Yes
|
| Bobbin winding and thread sensor
|
Yes
|
| Presser foot lifter with lifter safety device
|
Yes
|
| Start/Stop key
|
Yes
|
| Lighting
|
5 built-in white led lamps in 3 different locations
|
| Automatic thread cutter
|
Yes (unsynchronized type)
|
| Multi languages interface
|
13 languages
|
| USB port
|
Yes
|
| Built-in memory
|
4MB
|
| Direct PC link
|
–
|
| Designs & Programming | elna eXpressive 830 |
|---|---|
| Number of built-in stitches
|
180 with 6 embroidery fonts and 1 alphabet
|
| Monogramming
|
Fonts with 2 or 3 letters with 46 borders and 52 sew designs
|
| Maximum embroidery sewing speed
|
860 spm
|
| Maximum stitches per design
|
200’000 stitches
|
| Pattern tracing
|
Clockwise and double basting
|
| Jump thread trimming
|
Yes
|
| Auto return after thread break
|
Yes
|
| Flexible stitch travelings
|
direct jump to the desired point on the design
|
| Editing function
|
Resize, rotate, drag, flip, re-editing, zoom, copy and paste, arcing, combining the patterns, sewing order, adjust hoop position, grid line, corner layout, single color sewing, thread color change and grouping.
|
Standard Accessories
– Embroidery foot P
– Special bobbin holder for embroidery
– Magnetic clamps for hoops x8
– Hoop:RE36b (200 x 360 mm)
– Hoop:SQ20b (200 x 200 mm)
– Hoop:RE20b (140 x 200 mm)
– Hoop:SQ14b (140 x 140 mm)
– Bobbin x5
– Needle set
– Lint brush
– Scissors
– Spool holder small x2
– Spool holder large x2
– Spool holder special x2
– Additional spool pin
– Screwdriver large
– Screw driver for needle plate
– Bobbin holder cleaner
– Touch panel stylus
– USB cable
– Tutorial video (DVD and online)
– Embroidery Editor Software
– Extra-wide extension table
Complimentary Stitch4You Product Training/Warranty
Complimentary dedicated 1 to 1 training of Elna eXpressive 830L will be provided by Stitch4you (Ghim Soon)(+6588765598) trained, experienced and friendly sales consultants at our store. Our training should enable you to develop a deeper understanding of the machine and strengthen your confidence of handling it. Customers are expected to initiate arrangement of training sessions with Stitch4you team via our company whatsapp number +6588765598 or our Stitch4you Facebook Page. Arrangement of training sessions can also be made via phone calls on +6567489255.
Display sets are available at our store for customers to try too!
This machine’s 2 Years warranty is covered by Ghim Soon Machinery Pte Ltd (+6588765598).
By purchasing machines from Stitch4you (Ghim Soon), you are agreeable to abide to the terms and conditions of the warranty covered by Ghim Soon Machinery Pte Ltd spelt out as follow:
Ghim Soon Machinery Pte Ltd (“Ghim Soon”) warrants this home sewing machine (the “Product”), excluding consumable parts (such
as plastic front panel, foot controller, needles, needle threader, thread cutter, all hooks (sewing machines and overlocker), bobbins, loopers, feed dogs, knife blades, seals (O-ring, etc), bulbs, lamps, LED light bulbs/strips, and belts) to the original purchaser to be free from defects in the materials or workmanship of the Product under normal use and service from the date of purchase of the Product by the original purchaser (i.e. date of conclusion of sales contract either orally or in writing), as follows:
1. for a limited warranty period of one year on light assembly, wiring, switches; and
2. for a limited warranty period of one year on all other parts.
The product must be unplugged from the power source when not in use.
Faulty parts which are replaced will remain as property of Ghim Soon. Serviced machines which are not collected within 2 months from the date of notification for collection will automically goes under the property of Ghim Soon.
If, at any time during the applicable limited warranty period, the Product is determined to be defective by Ghim Soon, Ghim Soon will replace or repair the Product, at Ghim Soon’s option.
The Product is warranted only for normal household non-commercial use.
This limited warranty does not cover corrosion, rustings or stains, body or paintwork of machine, installation to wrong power supply, Act of Gods, service charges for checking improper installation/operation of machines,routine maintenance servicing,faulty display set or machine loan for commerical purposes, defects, damages and any kind whatsoever due to accidents, misuse/negligence, abuse, negligence, commercial use, or modification of, or to any part of the Product, or if the specifications supplied at the time of purchase with respect to proper maintenance and lubrication have not been observed or if the serial number affixed to the machine has been tampered with or defaced or if the original bill of sale, warranty certificate for the machine or other proof of purchase acceptable to Ghim Soon is not presented at the time service or repair is sought under this warranty.
This limited warranty shall be null and void unless the original purchaser (i) complies with any and all operating instructions in the manual provided or (ii) fails to have the Product periodically serviced and tuned by Ghim Soon in accordance with the service manual.
This limited warranty may only be used by the original purchaser of the Product. This limited warranty is not transferable to any subsequent purchaser, owner and/or any kind whoever, and Ghim Soon will take the responsibilities under this limited warranty only to the original purchaser and only the original purchaser may obtain service under this limited warranty.
Service under this warranty may only be obtained within Singapore where the original purchaser has purchased the Product.
GHIM SOON SHALL NOT BE LIABLE FOR ANY AND ALL DAMAGES AND LOSSES, OR DEFECT RESULTING FROM THE USE OF OTHERS THAN AUTHENTIC PARTS AND THE REPAIR OF THE PRODUCT BY UNAUTHORISED SERVICE PERSONNEL.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE ORIGINAL PURCHASER.
GHIM SOON SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND INCLUDING INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING DIRECTLY OR INDIRECTLY FROM ANY BREACH OF THIS LIMITED WARRANTY.
THERE ARE NO EXPRESS AND IMPLIED WARRANTIES OTHER THAN THOSE DESCRIBED HEREIN. EXCEPT TO THE EXTENT PROSCRIBED BY THE APPLICABLE LAW, THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY LIMITED TO THE DURATION OF THIS LIMITED WARRANTY.
To obtain limited warranty service the original purchaser must deliver or send the Product postage or freight pre-paid, to Ghim Soon along with (a) the original dated bill of sale issued by Ghim Soon to theoriginal purchaser, (b) a copy of this limited warranty, and, (c) a written short description of the defect. The original purchaser is strongly recommended to firstly contact Ghim Soon, if the original purchaser needs certain service under this limited warranty.
Ghim Soon is not responsible for any and all damages and losses that occur to the Product during transportation to or from the original purchaser.
For local purchases in Singapore, Ghim Soon is pleased to offer pick up services in which we will pick the machine up from designated locations,bring back to service thoroughly and deliver back to owner at a nominal fee of $30(includes GST). One way service will be chargeable at $20. These costs will not cover the servicing cost and cost of change of parts.
This warranty does not affect the statutory rights of the original purchaser under any applicable national laws in force nor the rights of the original purchaser against the dealer arising from their sales/purchase contract.
This limited warranty shall be interpreted, construed and enforced in all respects in accordance with the laws of Singapore.
Ghim Soon reserves the right to amend or modify the terms and conditions of this warranty without giving prior notice.
